4-inch Android intelligent control panel

Smart Home + Background Music Controller

easy to use
Move with your heart

Super performance extreme experience

4-inch IPS display, 480*480 resolution, equipped with high-performance quad-core CPU, output power 30W, supports lossless format music playback, whether it is smart home control or home background music, you can do whatever you want.

4-core CPU super performance, easy to deal with the control of smart home and background music
1+8G memoryMore than enough, it runs smoothly
4-inch displayHigh screen occupation, high-end atmosphere
2*25W powerListen to music at home and enjoy leisure time
Music pushSupport Bluetooth, DLNA, Airplay push

With built-in Tuya ZIGBEE module, all smart devices connected to

Tuya can be controlled. The Tuya IoT platform supports AI voice

speakers such as ALEXA and GOOGLE.

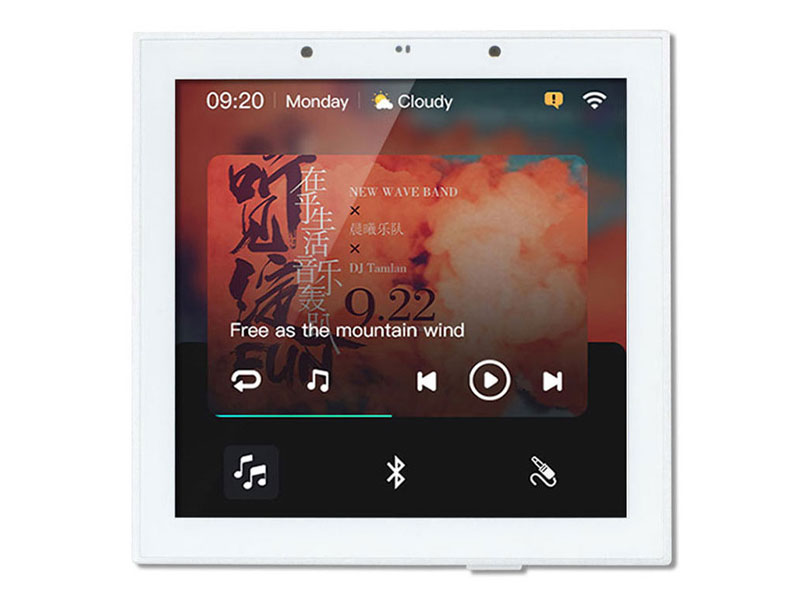

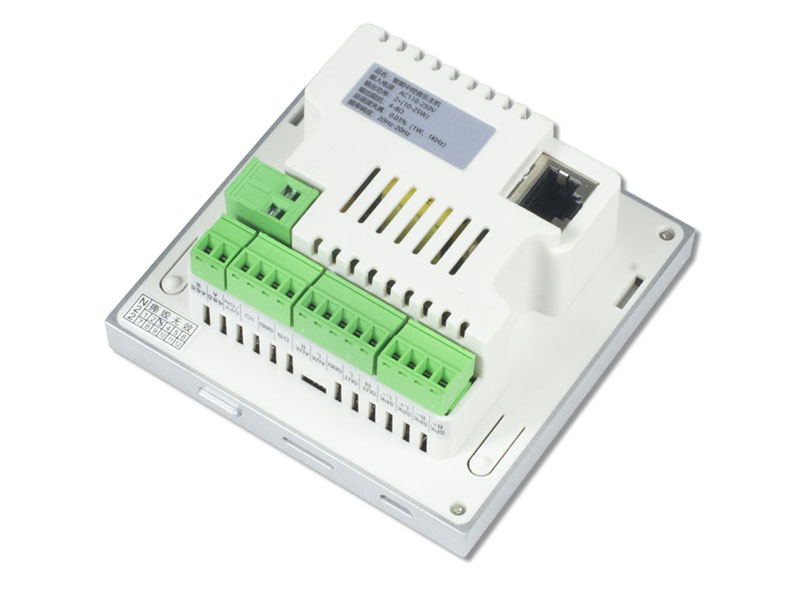

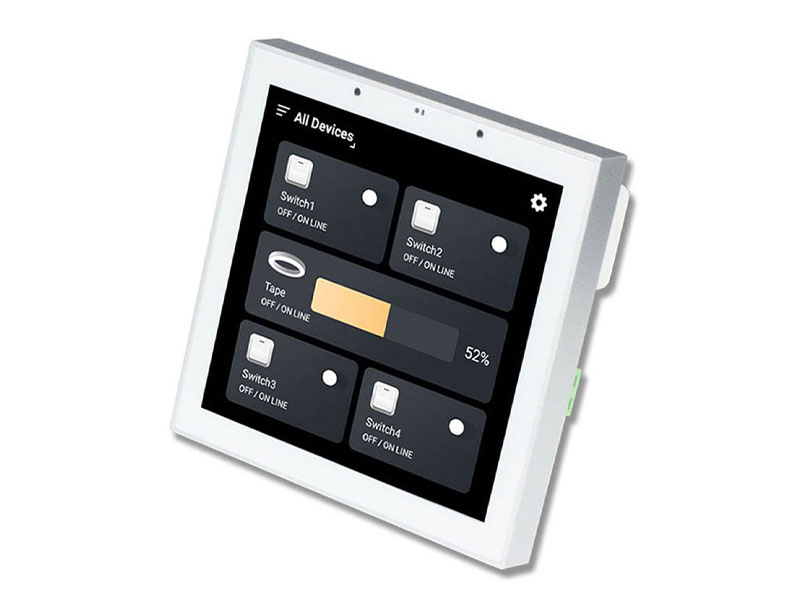

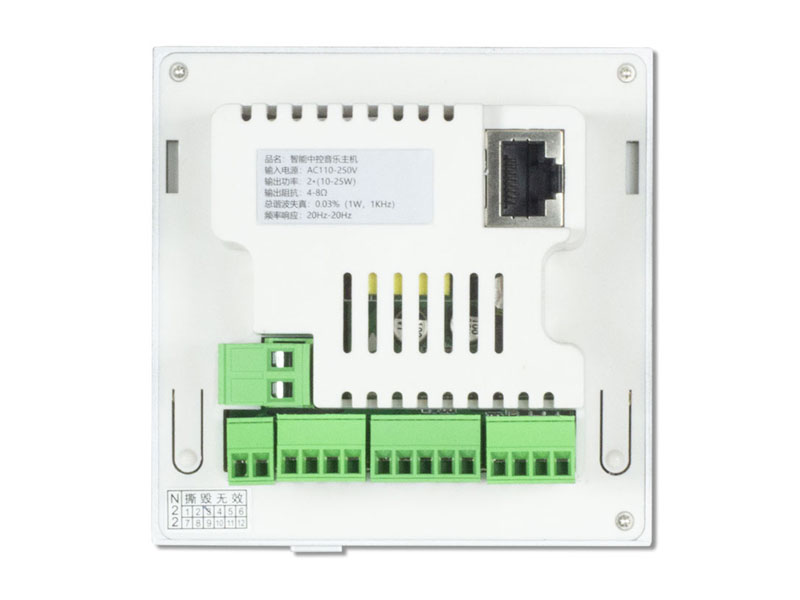

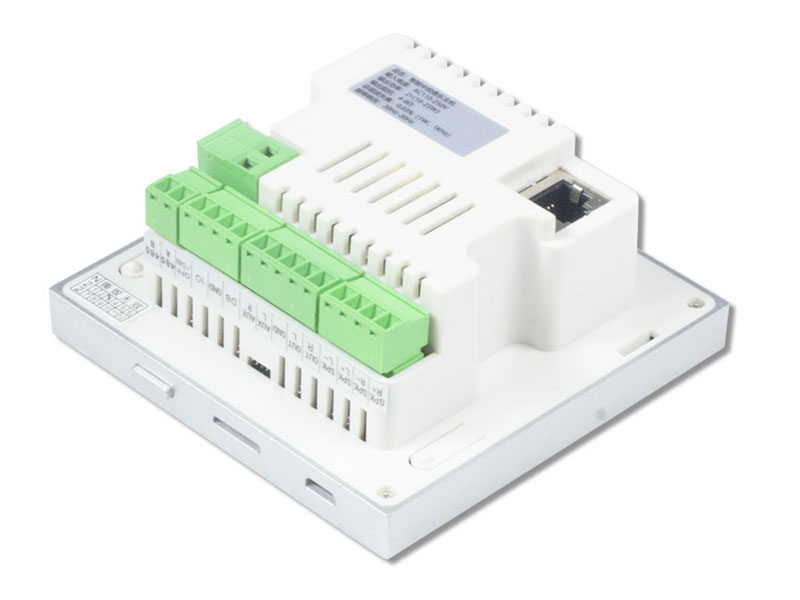

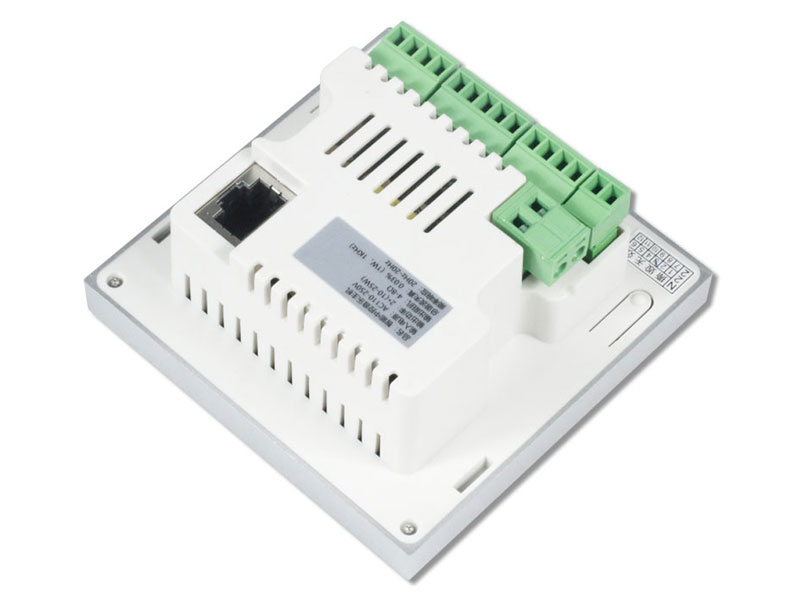

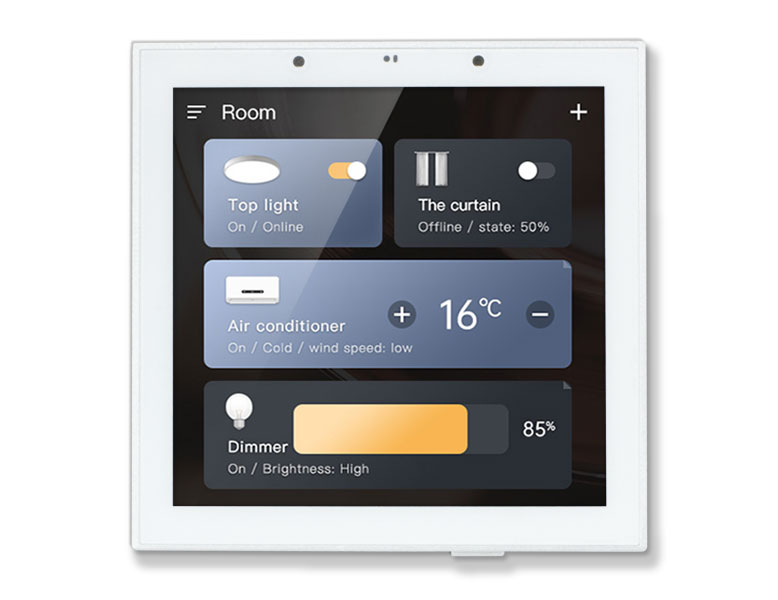

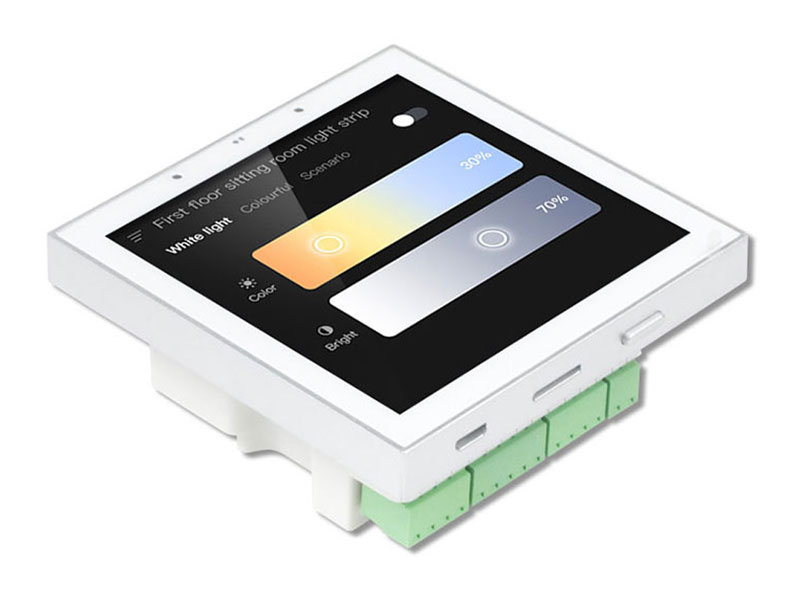

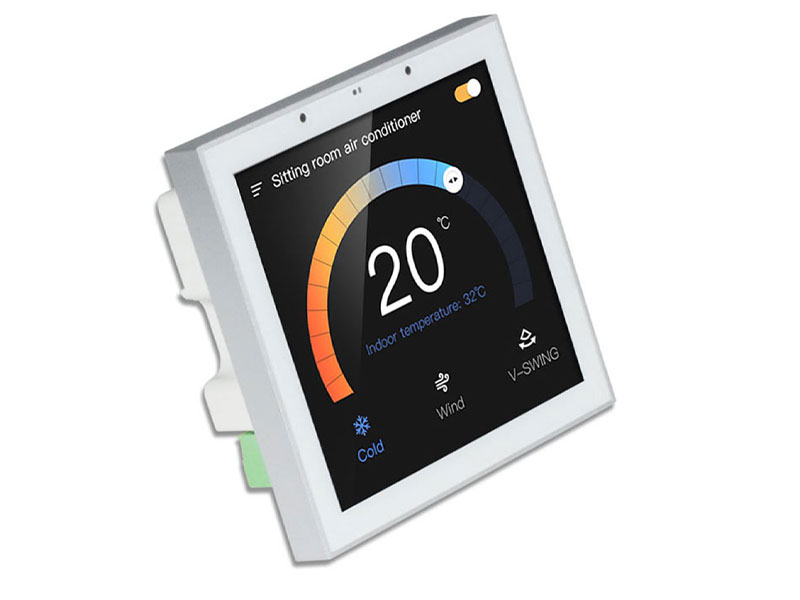

TL-86W Android intelligent control panel

TL-86W Parameters

  • Panel color:
  • Dimension: 86*86*38mm(LxWxD)
  • Cutout: 78*78*50mm(LxWxD)
  • System:Android 8.1
  • IoT Protocol: Tuya
  • Protocol: Zigbee
  • Serial port485
  • Networking: RJ45 WIFI
  • Voltage: AC110-250V DC12-24V
TL-86W Android intelligent control panel
TL-86W Android intelligent control panel
TL-86W Android intelligent control panel
TL-86W Android intelligent control panel
TL-86W Android intelligent control panel
TL-86W Android intelligent control panel
TL-86W Android intelligent control panel
TL-86W Android intelligent control panel
TL-86W Android intelligent control panel
TL-86W Android intelligent control panel
TL-86W Android intelligent control panel

Click for larger image

TL-86W 4-inch Android intelligent control panel

1、Output power: 2*25W output

2、Dimension:86*86*38mm

3、Cutout:78*78*50mm

4、Voltage: AC110-250V DC12V-24V

5、4-inch IPS display, 480*480 resolution,
6、4-core CPU
7、1+8G memory, ,
8、support Bluetooth,
9、Smart home: Built-in Tuya ZIGBEE module, all smart homes connected to Tuya can be controlled.

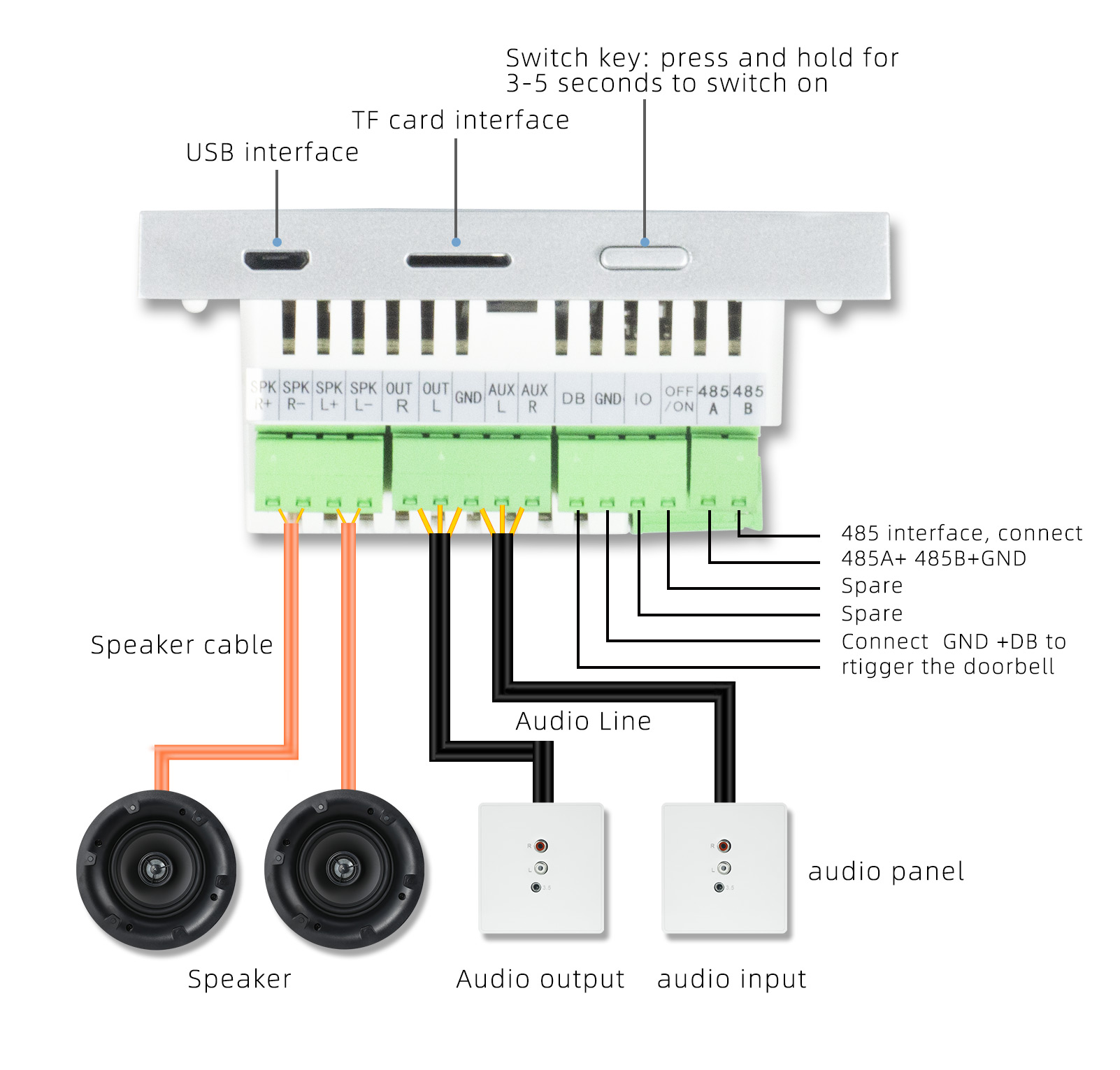

10、Support 485 bidirectional control

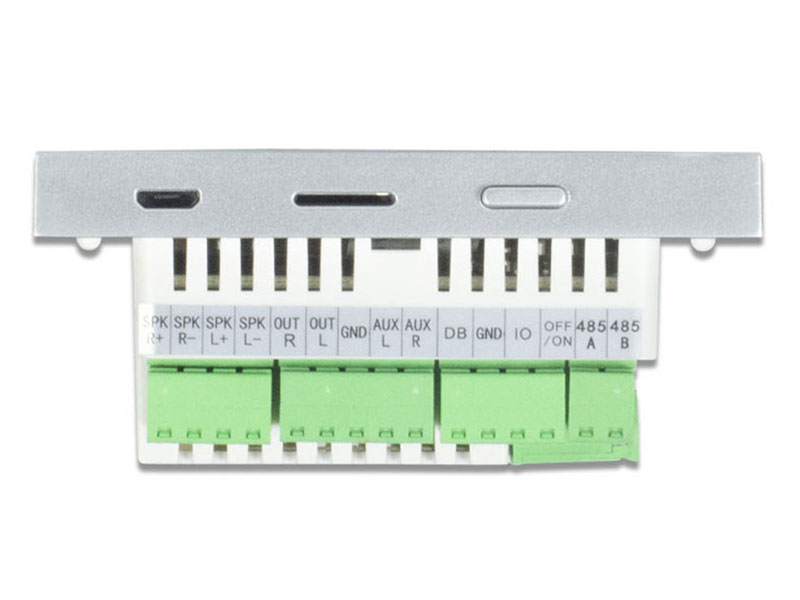

11、Input and output: support TF card, U disk local playback,
12、audio input and output 1 channel, bass output 1 channel, timing output: 1 channel
13、Support lossless format playback
14、Built-in sound adjuster
15、Support power-off memory, multi-gear timing switch

16、Language: Support English, Chinese ,Arabic ,Polish
