4-inch Android intelligent background music controller

Dual zone volume control background music controller

Quad core CPU

1.5G+32G memory

4 speaker channels

Android system

Lossless format

TF card and U disk

Bluetooth push

DLNA and Airplay

Two zones

Super performance extreme experience

4-inch IPS display screen, 480 * 480 resolution, equipped with high-performance quad core CPU, output power of 4 * 25W, supporting lossless format music playback, creating home background music, and creating a warm home

4-core CPU super performance, easy to deal with the control of smart home and background music

1.5+32G memoryMore than enough, it runs smoothly

4-inch displayHigh screen occupation, high-end atmosphere

4*25W powerListen to music at home and enjoy leisure time

Music pushSupport Bluetooth, DLNA, Airplay push

TL-JX805 Andriod background music controller

TL-JX805 Parameters

Panel color:
Dimension: 86*86*47mm(LxWxD)
Cutout: 78*78*70mm(LxWxD)
System:Android 6.1

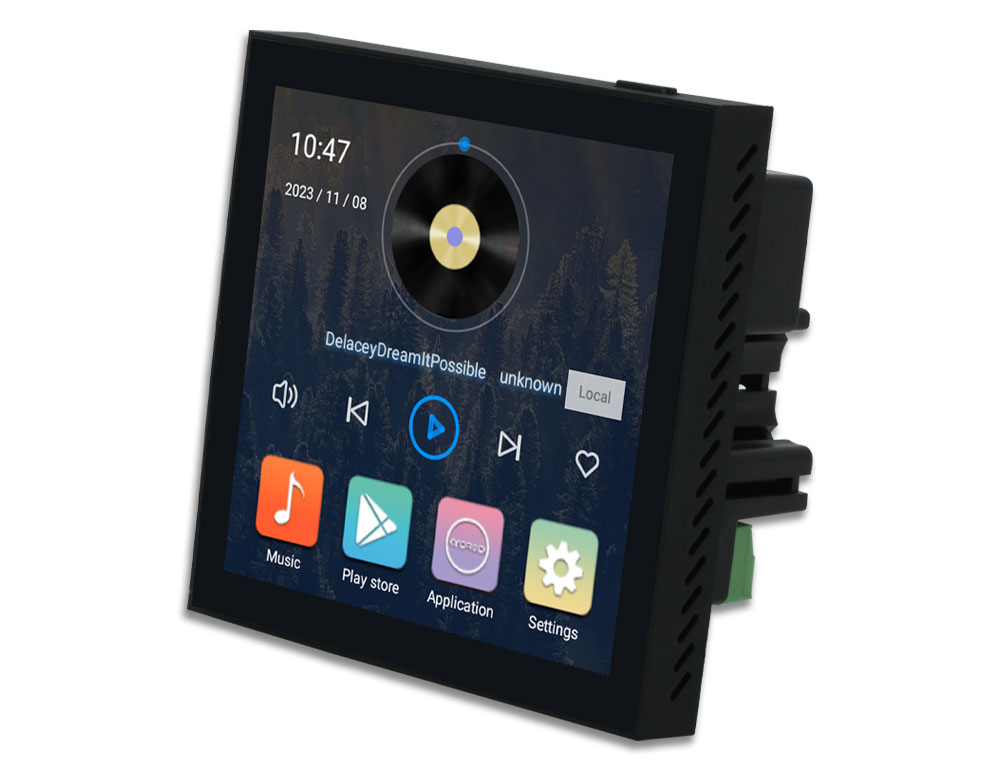

Display:4 inch IPS touch screen
Output:4*25W
Serial port485
Networking: RJ45 WIFI
Voltage: AC110-250V DC12-24V

Click for larger image

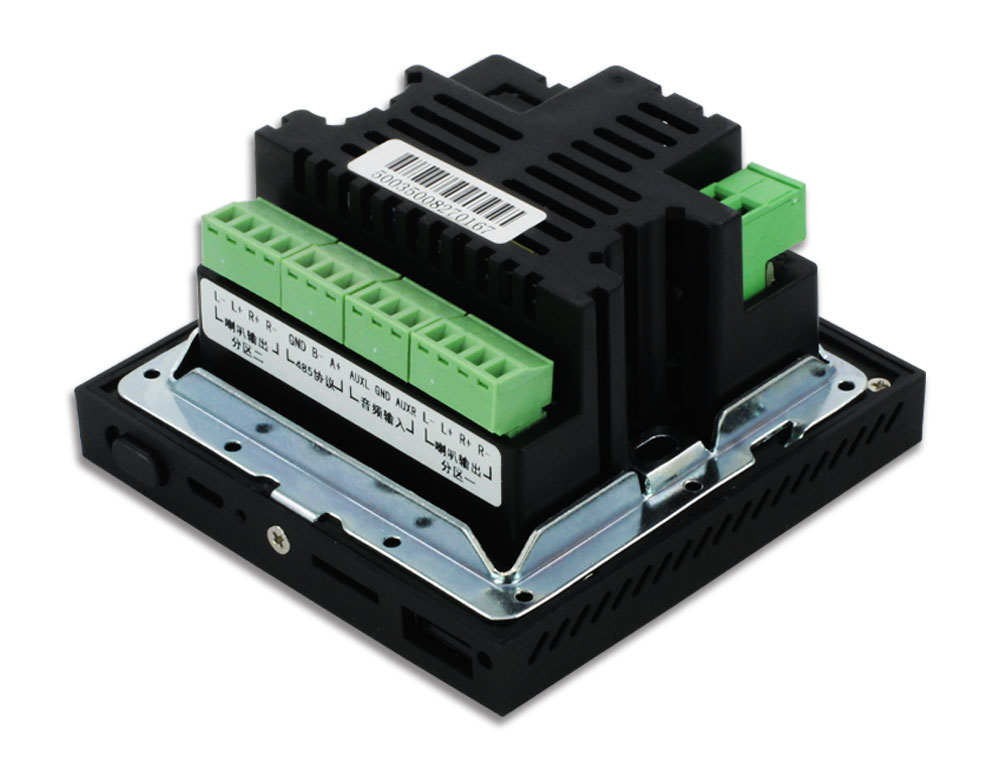

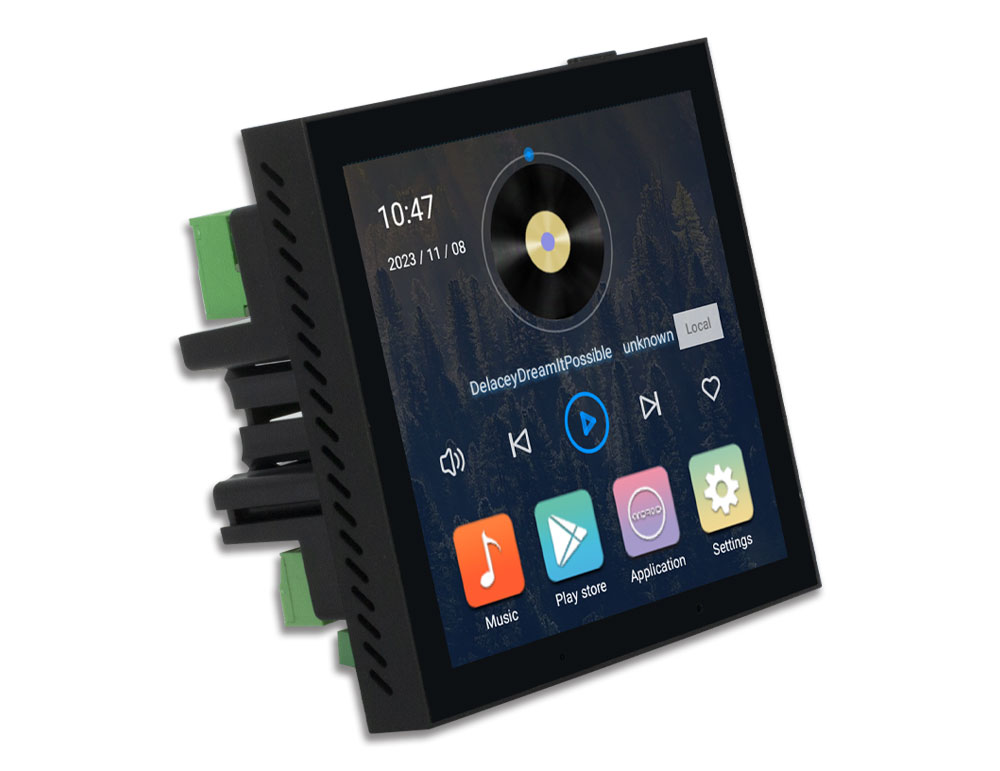

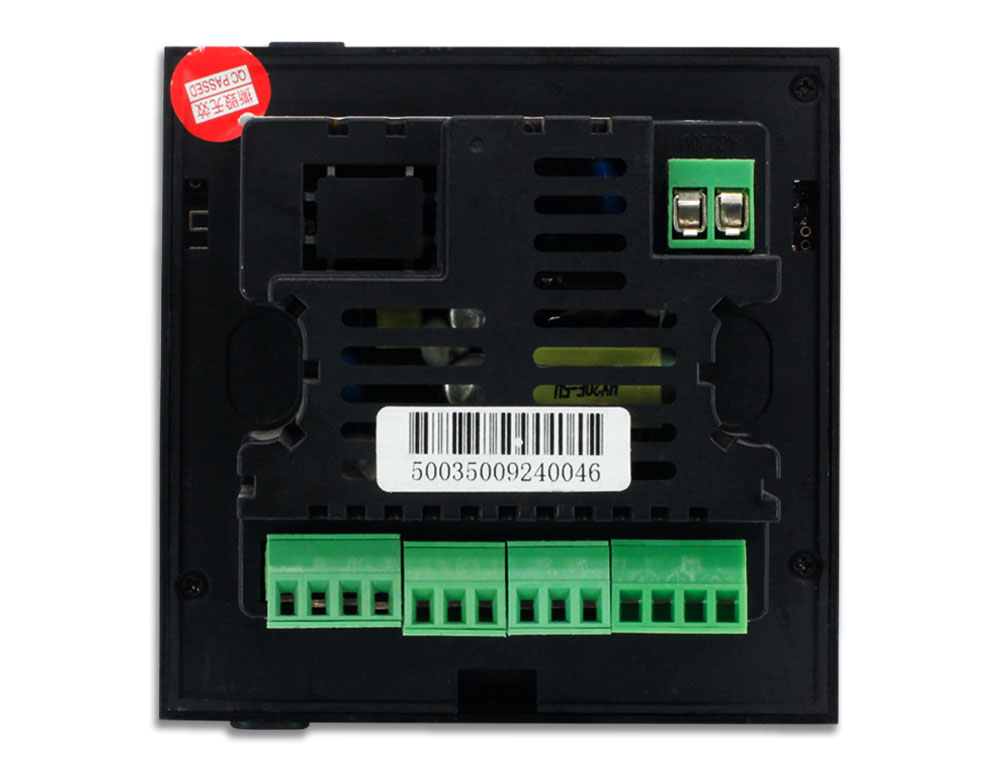

TL-JX805 4-inch Android intelligent control panel

1、Output power: 4*25W output

2、Dimension:86*86*47mm

3、Cutout:78*78*70mm

4、Voltage: AC110-250V

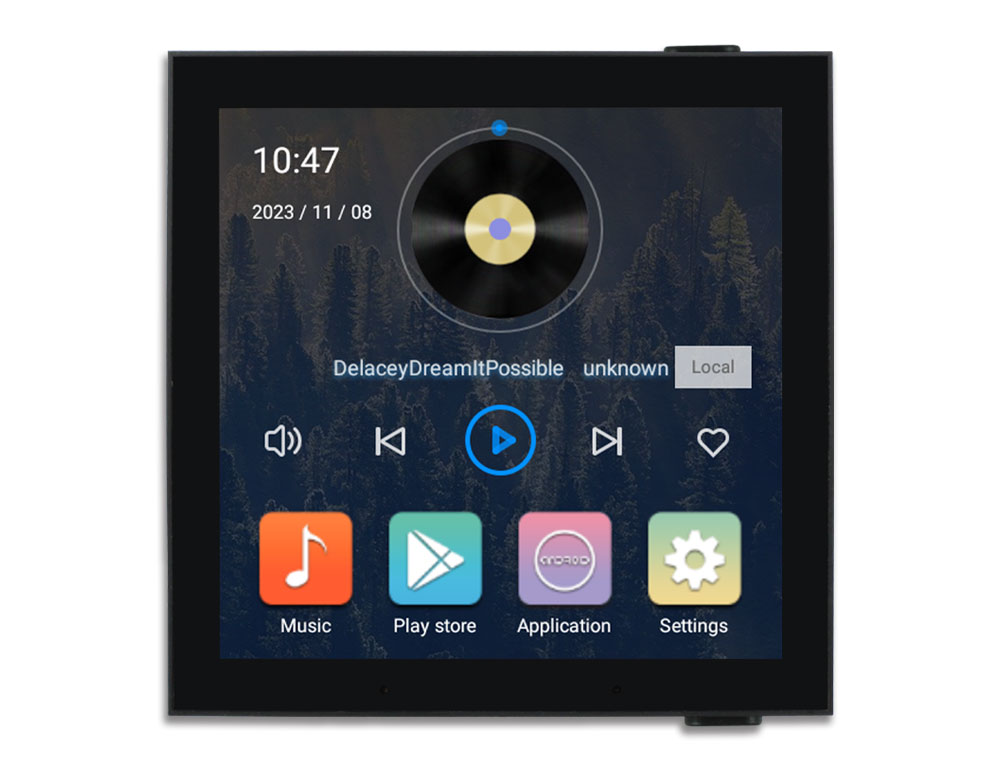

5、4-inch IPS display, 480*480 resolution,
6、4-core CPU,1.5+32G memory,
7、Support Android DLNA, Apple Airplayer,
8、support Bluetooth,

9、Input and output: support TF card, U disk local playback,

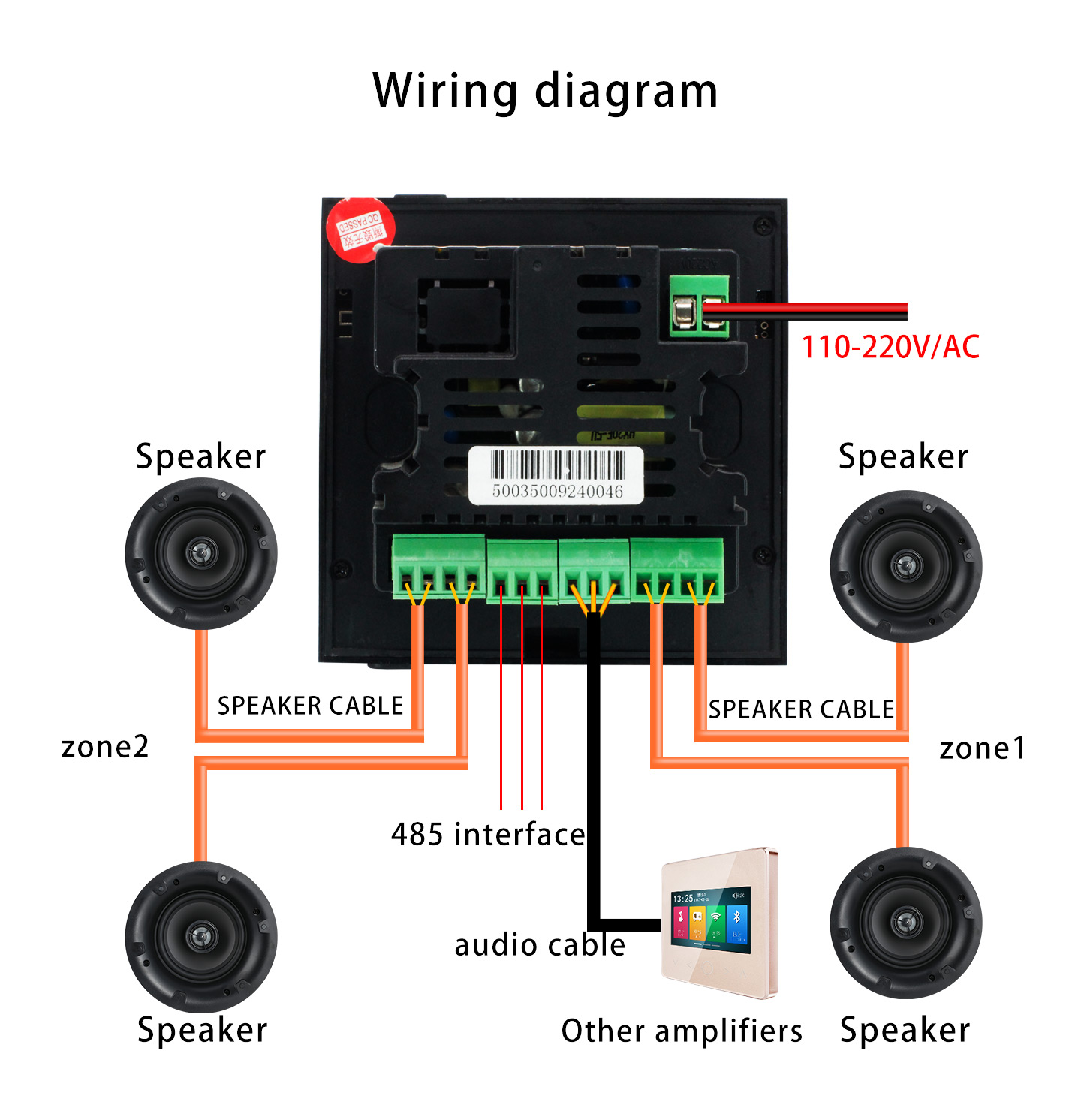

10、2 volum zone, can connect with 4 channels speakers
11、Support lossless format playback
12、Smart home interface: support Zigbee, serial 485 smart
home interface
13、Networking: support online RJ45 and WIFI networking
14、Android system: App can be installed
15、Support power-off memory, multi-gear timing switch
