TL-C10G2 8-Inch background music controller

4 volume zone background music controller

Quad core CPU
Quad core CPU
2G+16G memory
2G+16G memory
online music
online music
Android system
Android system
Four partitions
Four partitions
TF card
TF card
Bluetooth push
Bluetooth push
DLNA and Airplay
DLNA and Airplay
8-channel output
8-channel output

4-zone control

The volume of the four zones can be adjusted separately
Independent volume control for different rooms

Super performance extreme experience

8-inch IPS touch screen high-definition screen, equipped with high-performance quad-core CPU, 2+16G memory, 4-zone volume adjustment, 8-channel output, output power 8*25W, support lossless format music playback

4-core CPU super performance, easy to deal with the control of smart home and background music
2+16G memoryMore than enough, it runs smoothly
8-inch displayHigh screen occupation, high-end atmosphere
8*25W powerListen to music at home and enjoy leisure time
Music pushSupport Bluetooth, DLNA, Airplay push

8-inch IPS high-definition display,
large-screen display, more high-end atmosphere,
to upgrade the home decoration to a grade

TL-C10G2 8-Inch background music controller

TL-C10G2 Parameters

  • Panel color:
  • Dimension:197*128 *72mm
  • Cutout: 179*112*70mm
  • Output:8*25Ｗ
  • System:Android
  • Display:8 inch IPS touch screen
  • Screen Mirroring:Air play/DLNA
  • Output channel：8-channel output
  • partition:4-zone volume adjustment
  • Voltage: AC110-250V
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller
TL-C10G2 8-Inch background music controller

Click for larger image

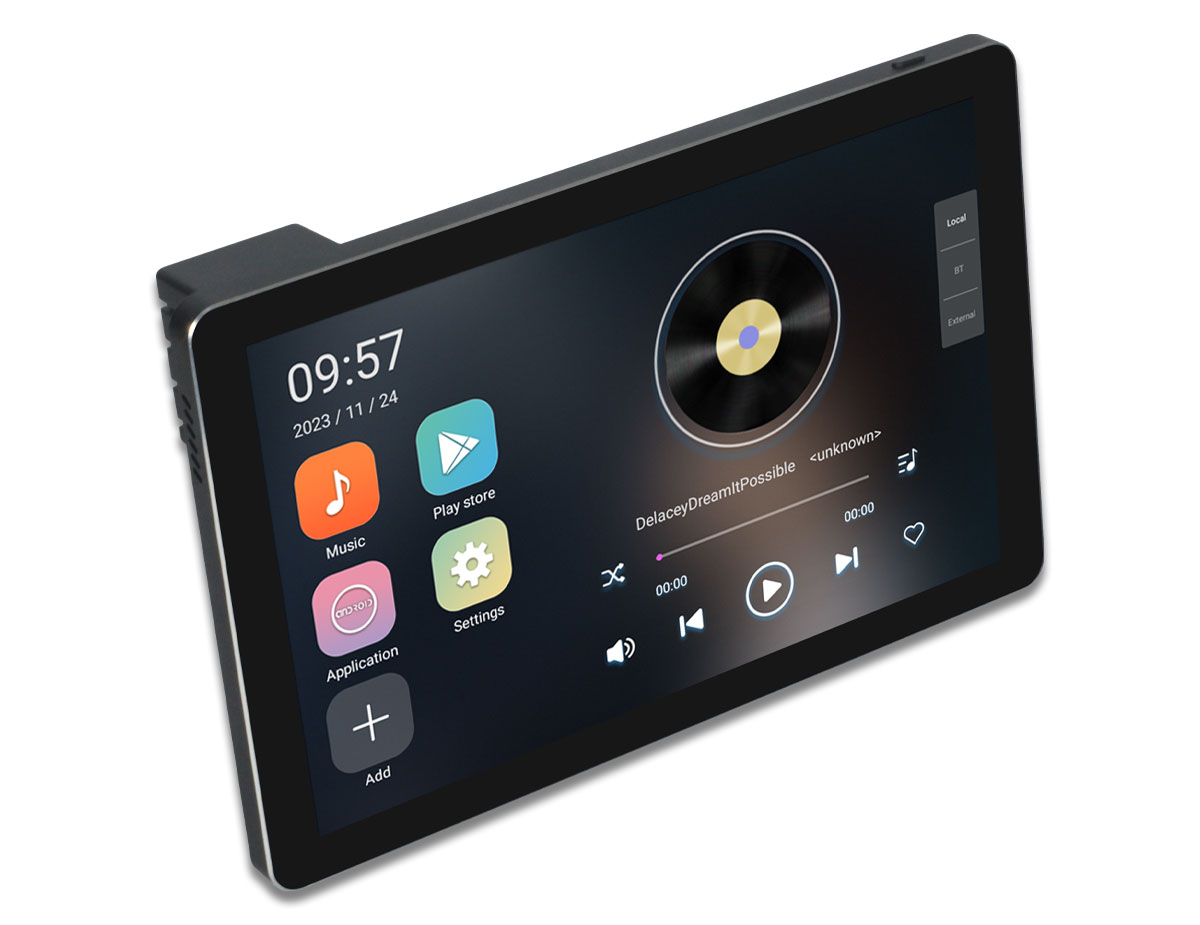

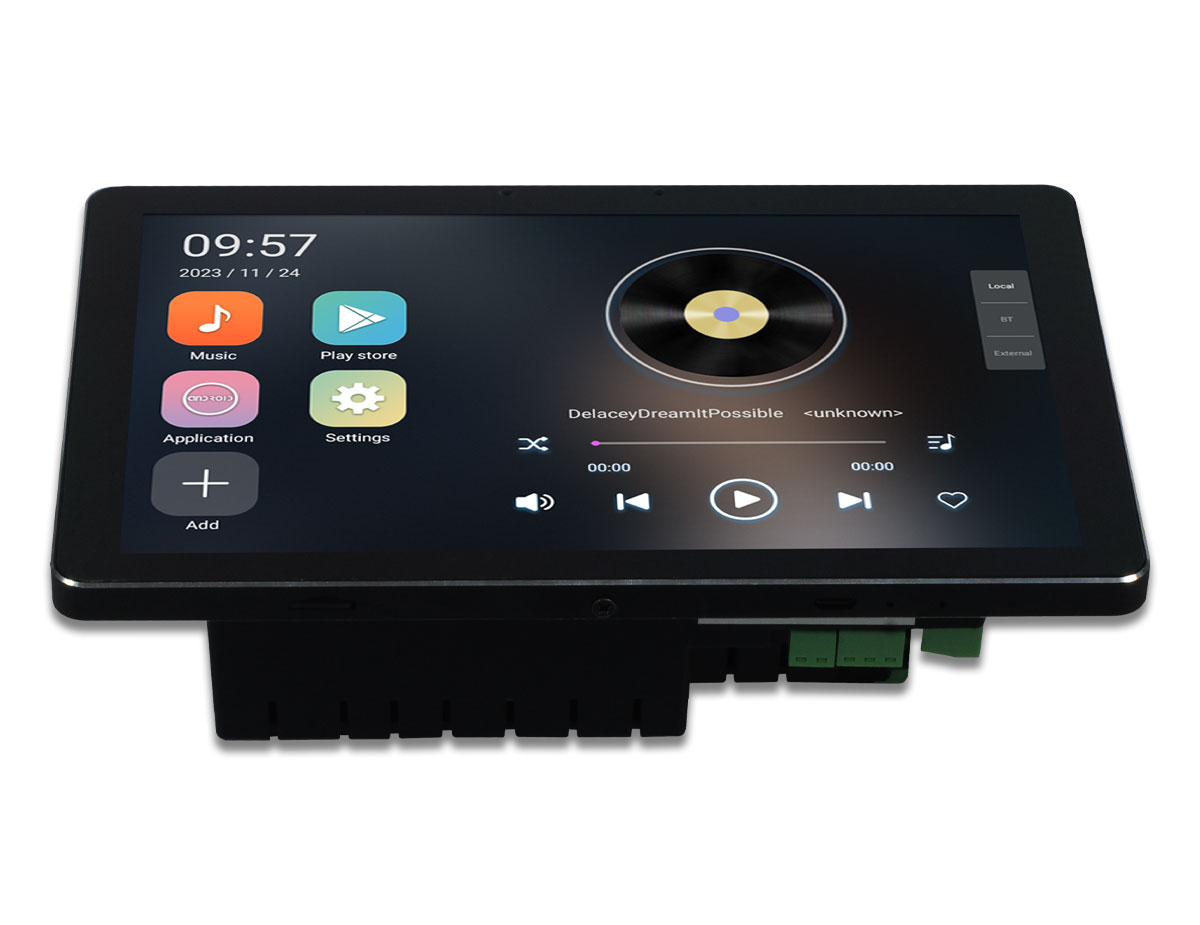

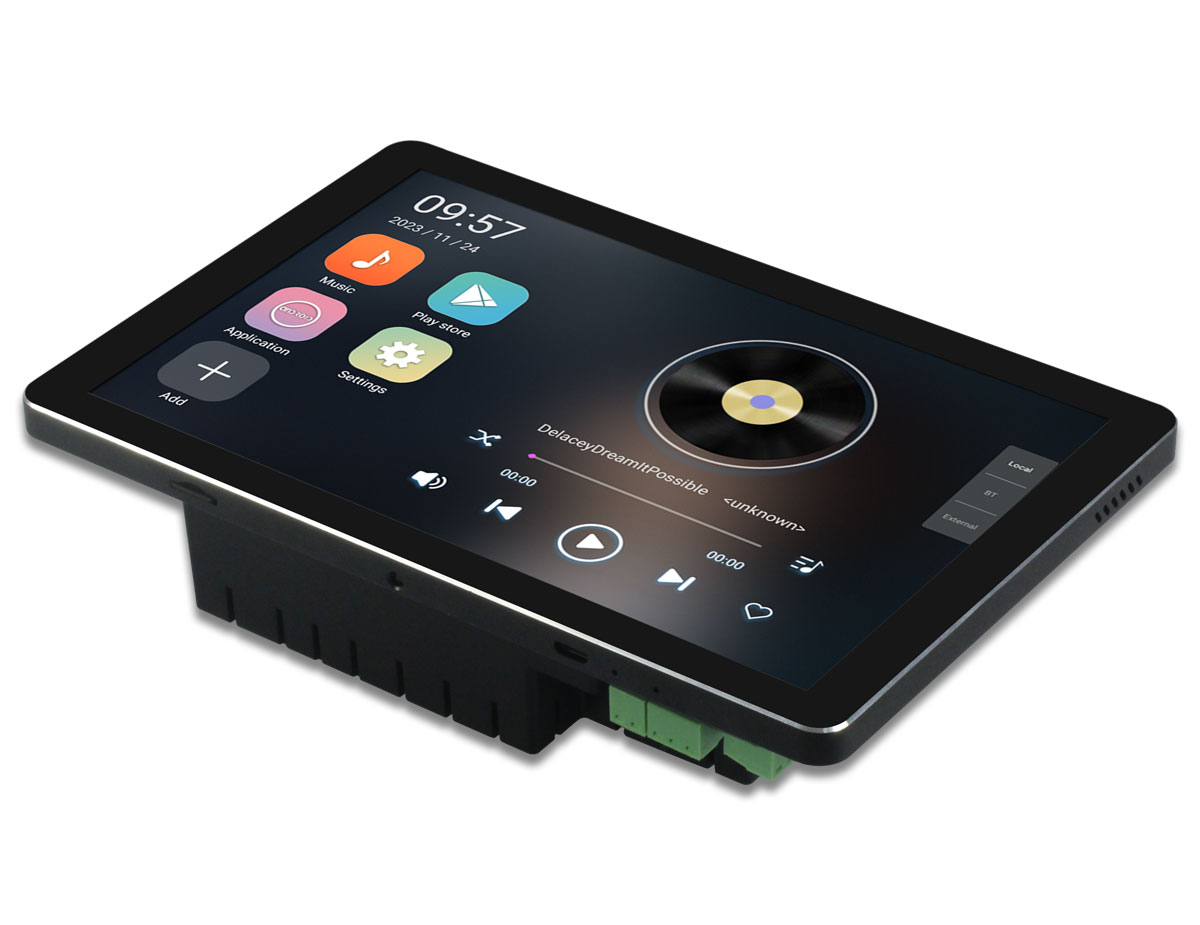

TL-C10G2 8 inch Android background music controller

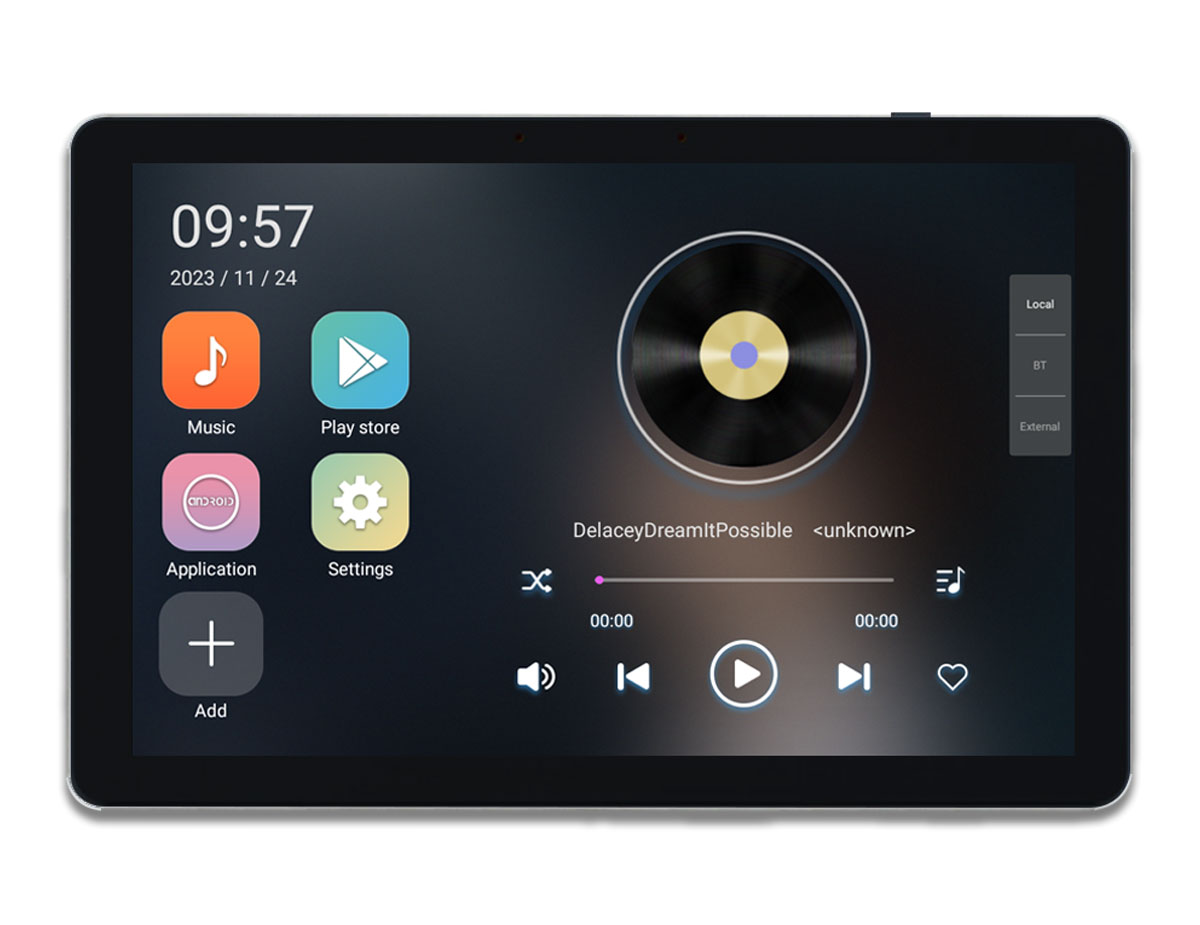

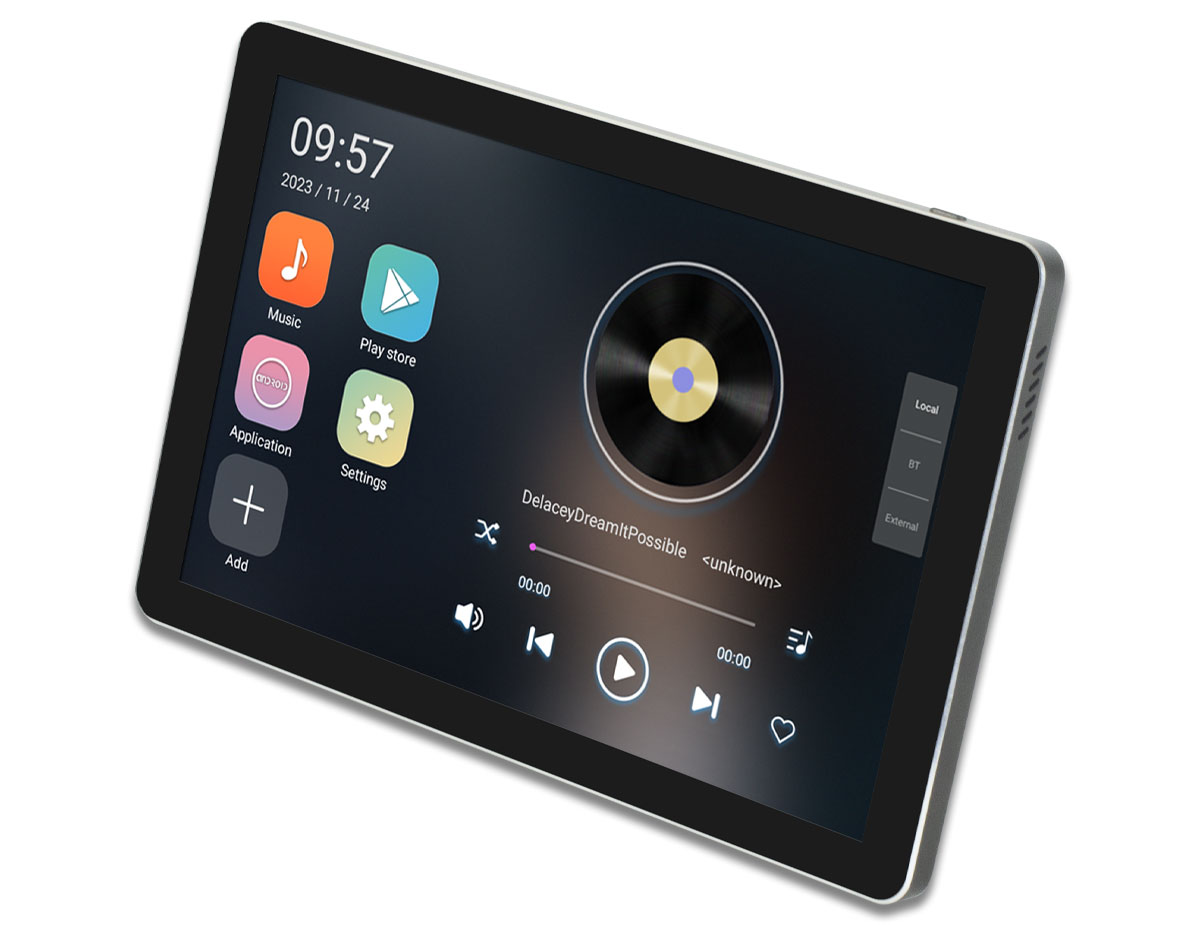

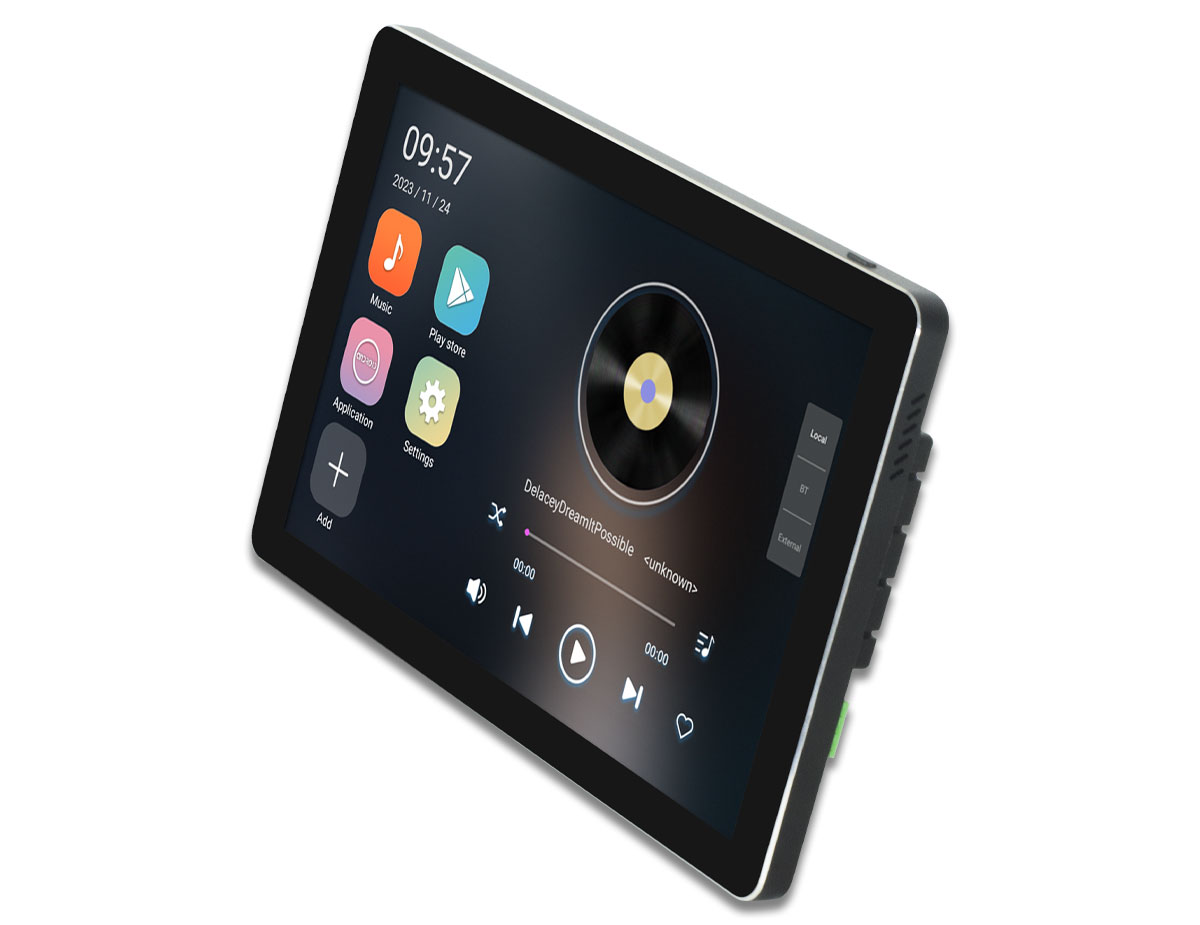

1、Display: 8-inch IPS high-definition touch screen

2、System: Android system

3、partition: 4-zone volume adjustment

4、Output power: 8*25W output

5、CPU: Quad-core CPU

6、Memory: 2G, 16G storage memory

7、Channels: Four stereo channels,

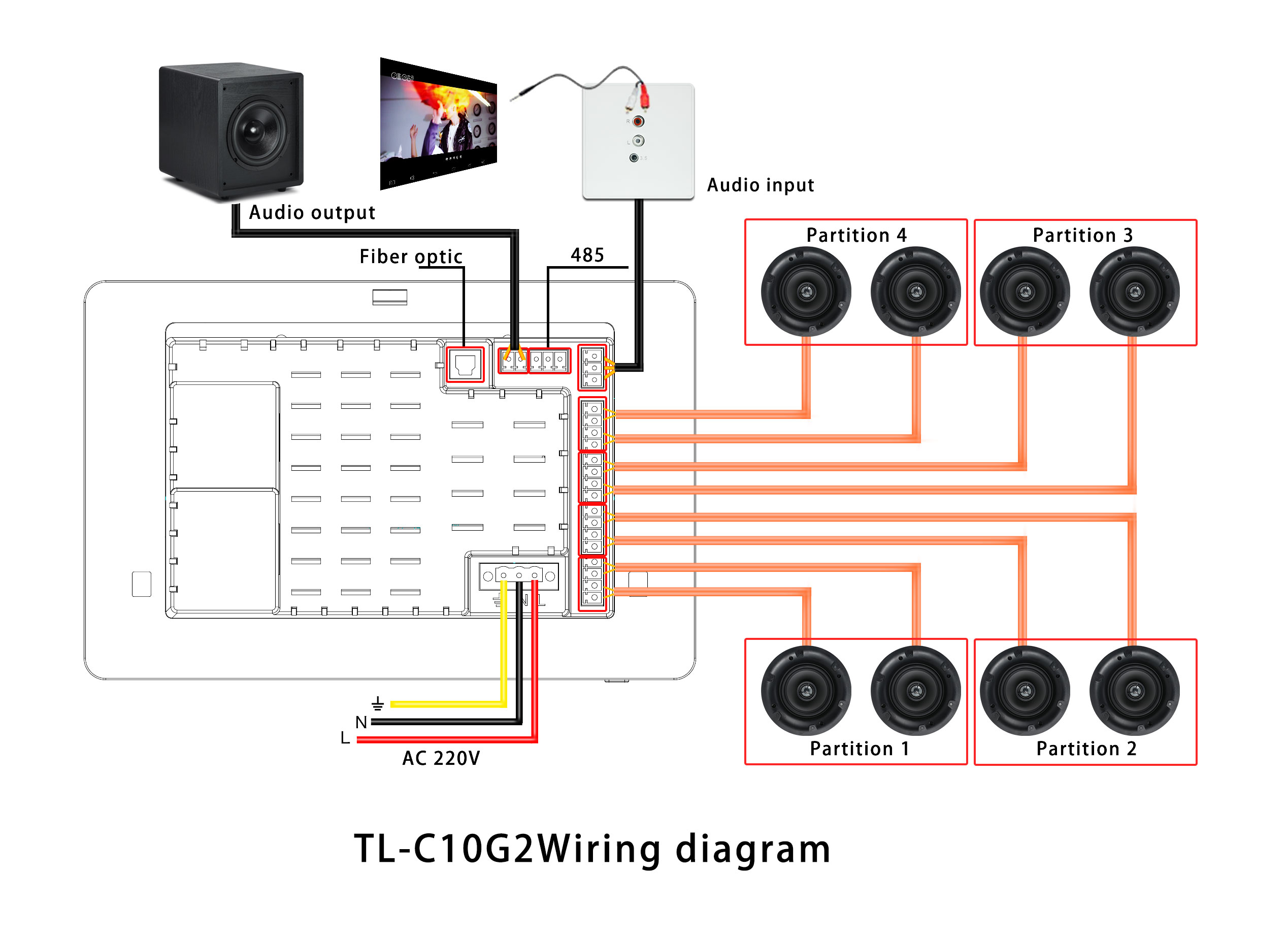

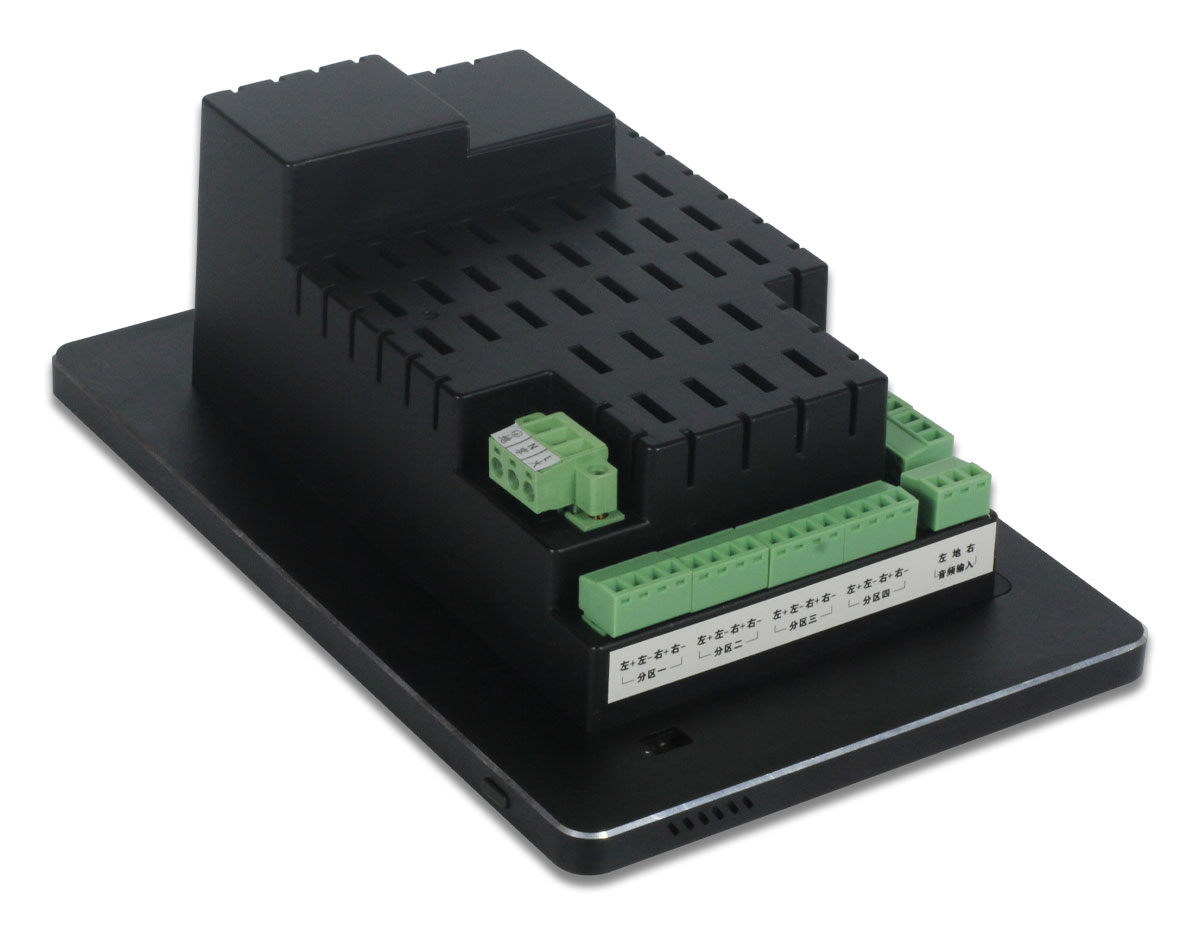

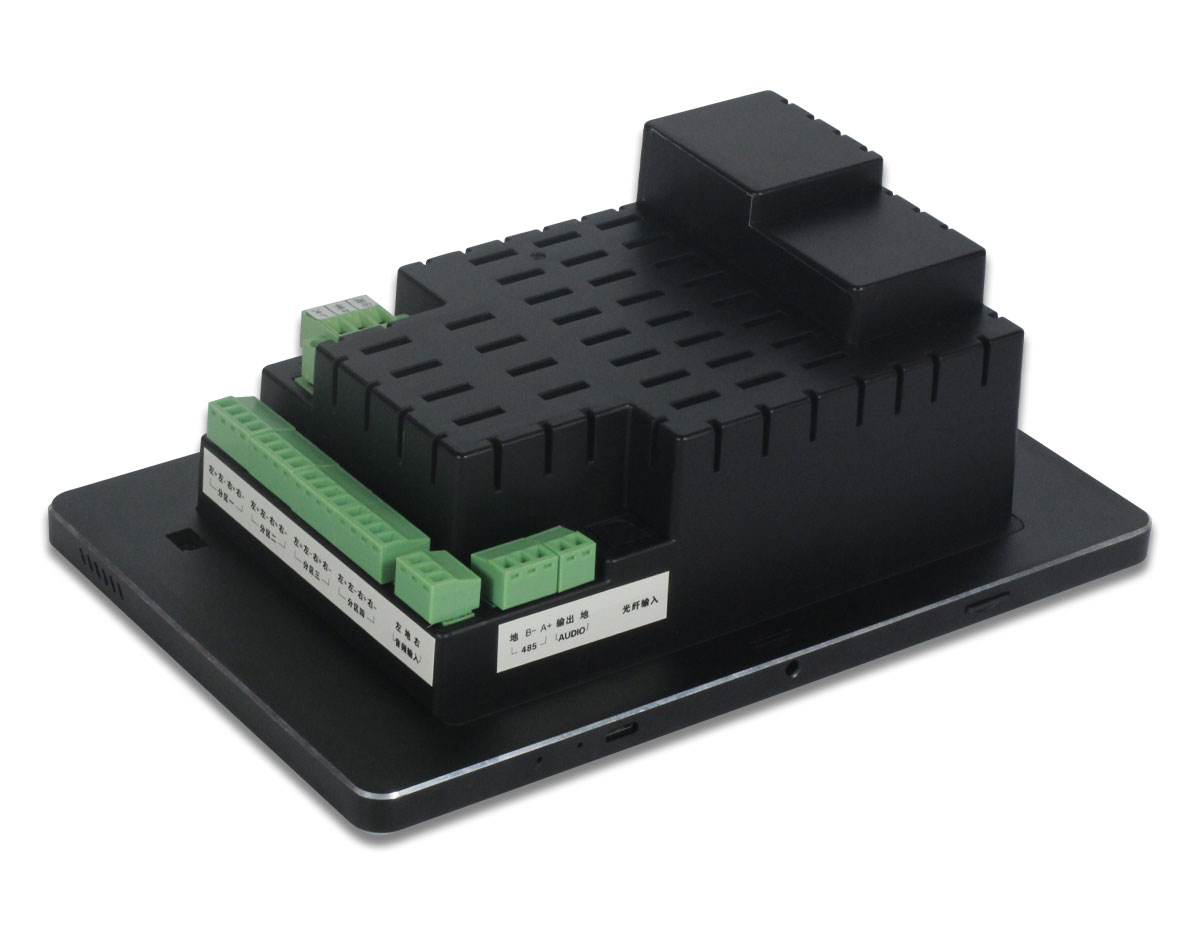

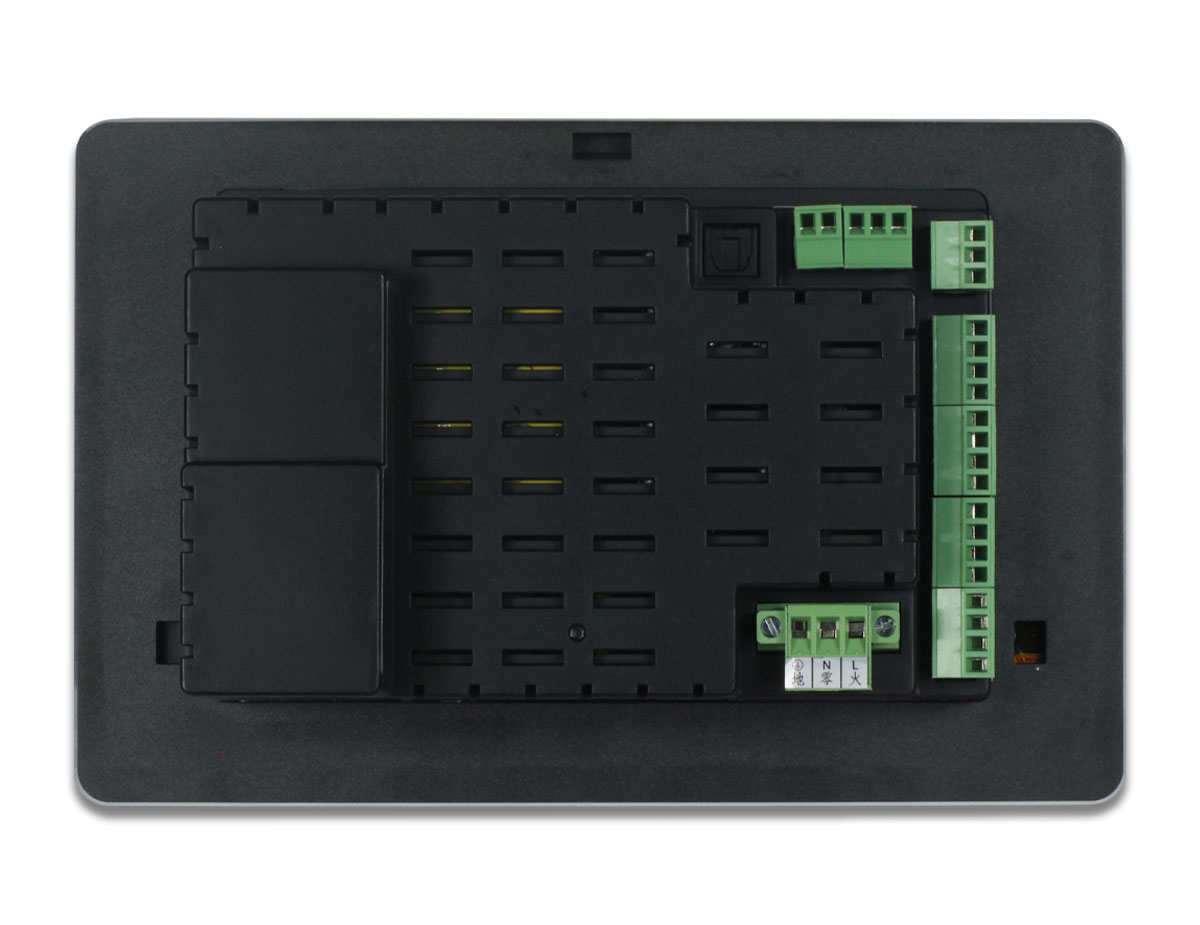

8、Speaker interface: 8 speaker terminals

9、Screen projection: Air play/DLNA

10、Bluetooth: Support Bluetooth push

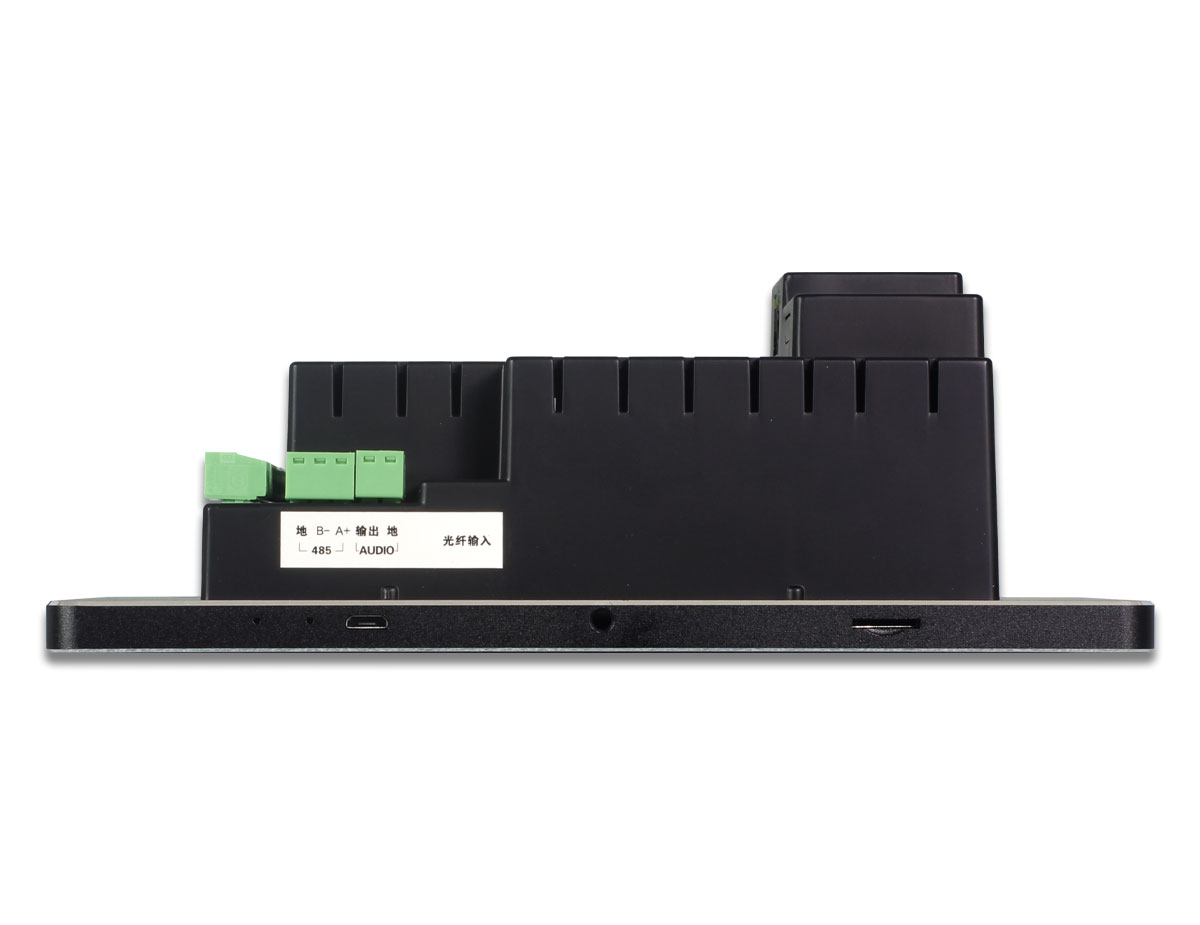

11、Input and output interface: 1 channel audio input, 2 channel audio output

12、External expansion: support TF card

14、Serial protocol: 485 interface

15、Music format: support full format lossless music playback
